홈 /제품 소개/디지털 ECG 기계/Testing Device Heart Rate Monitor ECG600G 7" Ecg Machine Touch Screen ECG 6 Channel 12Lead ECG Machine Timing Price

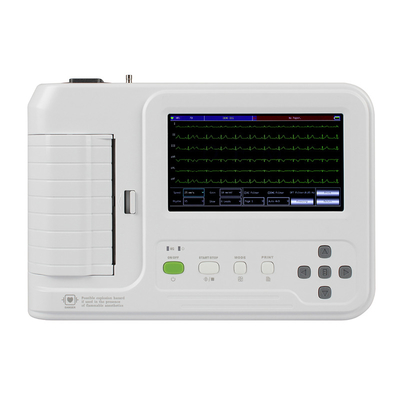

Testing Device Heart Rate Monitor ECG600G 7" Ecg Machine Touch Screen ECG 6 Channel 12Lead ECG Machine Timing Price

5 Pieces
MOQ
$479.00(5 - 99 Pieces) $450.00(100 - 499 Pieces) $420.00(500 - 999 Pieces) $390.00(>=1000 Pieces)
가격
Testing Device Heart Rate Monitor ECG600G 7" Ecg Machine Touch Screen ECG 6 Channel 12Lead ECG Machine Timing Price
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Type: Biochemical Analysis System
Model Number: ECG600G
Instrument classification: Class II
Warranty: 1 Year
After-sale Service: Online technical support
Product name: ECG Machine
Function: Detecting Body Health
Feature: Testing Device
Certificate: CE ISO
Language version: 18 Languges Optional
Color: Blue
Display: LCD
Material: ABS
Accuracy: 99.5%
Memory: Memory Stores Minimum190000 Results
기본 정보
인증: CE ISO
Model Number: ECG600G
결제 및 배송 조건
제품 설명
Product Description
ECG600G 7" Touch Screen Elektrokardiograph 6 Channel 12Lead ECG EKG Machine Sync

Introduction:
ECG600G is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It
features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters
automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management.

Function:
1)Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
2)Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity,
paper speed and filter state, etc.).
3)Full-digital filter design, anti-baseline drift, AC and EMG interference.
4)Adjust the baseline automatically, optimize the print setting and optional rhythm leads.
5)In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
6)Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG
filter of ECG signal.
7)With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, which reduces the doctor’s
burden and improves work efficiency.
8)Sync collection for 12-lead ECG, multiply printing formats, including 2×6+1(rhythm lead), 2×6, 3×4, 3×4+1(rhythm lead), 4×3,
4×3+1(rhythm lead), 6×2, 6×2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.
9)Display of 3/6/12-lead ECG, "Lead off" and "Lack of paper" on one screen, and with ECG DEMO mode. Auto-check and auto-analysis
for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case
database.
10)Time print can be set to every 1/2/3/5/10/20/30/60 minutes.
11)Print setting, including “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save
case), “Save no print”(only save case but not print waveform).
12)AC/DC, built-in rechargeable lithium battery and auto-protection circuit, and automatic power off when there is no operation in
appointed time.
13)Store more than 1000 cases, convenient for case review and statistic.
14)Multi-language(Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakstan, Russian and
Ukrainian) interface and report.



Package included:
1XECG600G ECG Machine
1XLead cable
1 setXLimb electrode(4PCS)
1 setXChest electrode(6PCS)
1XData transmission line
1XThermal recording paper
1XPower cord
1XEarth wire
1XUser manual
Performance
Performance:
Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Calibration voltage: 1mV
Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: <15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Safety classification: class I, type CF and defibrillation-proof applied part
Recording mode: thermal printing system
Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.
Manual record: set record according to record format, manually switching leads.
Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Paper size: 80mm(W)×20m(L)
Sampling frequency: 1000Hz
EMG interference filter: 25Hz/35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)'

Paper speed:
Auto: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%
Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%
Manual: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%
Optional:
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive gel
Physical characteristic
Dimension: 315mm(L) × 215mm(W) × 92mm(H)
Weigh: 1.7Kg
Packing & Delivery
Package included: 1XECG600G ECG Machine 1XLead cable 1 setXLimb electrode(4PCS) 1 setXChest electrode(6PCS) 1XData transmission line 1XThermal recording paper 1XPower cord 1XEarth wire 1XUser manual
