Name: Home Ecg Machine For Human Price 7 Inch Color LCD Display
Brand: Home Ecg Machine For Human Price 7 Inch Color LCD Display
SKU: RSD33006G, RSD3306G
Price: 1 USD
Availability: InStock
Rating: 5 (172 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Type: Clinical Examination Aids, Pathological Analysis Equipment

Model Number: RSD33006G, RSD3306G

Instrument classification: Class II

Monitor size: 7 inch colour LCD

Parameters: ECG

Leads: standard 12 leads

Certificate: ISO

Work modes: Manual, Automatic, Arrythmia

Shipement: DHL,UPS,FEDEX,TNT

payment: T/T,Western Union,Paypal

기본 정보

인증: ISO

Model Number: RSD33006G, RSD3306G

결제 및 배송 조건

Packaging Details: Carton

Supply Ability: 1000 Set/Sets per Week

제품 설명

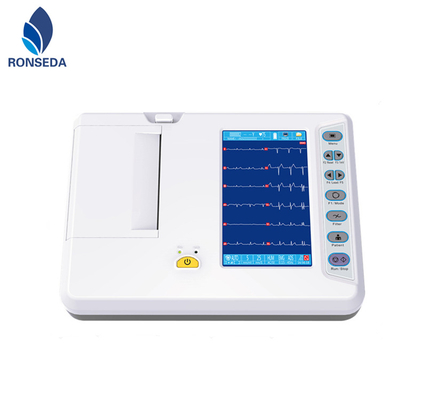

RSD3306G home Ecg Machine For Human price

Product Details

Features:

1.Portable and delicate design, easy to operate

2.Accurate pulse pace identification function

3.High accuracy digital filter, automatic baseline adjustment

4.Working modes: Manual, Automatic, Arrythmia Analysis, Storage

5.112mm, 6 channel format recording, excellent automatic interpretation

6.800x480 graphic 7 inch touch color LCD to simultaneously display ECG information

7.250 patient cases storage ( SD card storage is optional )

8.Detailed patient information record

9.Freeze function

10.Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for to 4 hours.

11.USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )

Technical Specifications:

1.Leads: standard 12 leads

2.Lead acquisition:12bit/1000Hz(synchronously 12 leads )

3.Work mode: Manual, Auto, R-R analysis

4.Filter

AC filter: 50Hz / 60Hz

EMG Filter: 25Hz / 45Hz

Anti-Drift Filter: 0.15Hz (Adaptive)

5.CMMR: ≥120dB (with AC filter)

6.Input circuit: floating; protection circuit against defibrillator effect

7.Input Impedance: ≥50MΩ

8.Input circuit current: ≤0.05μA

9.Patient current leakage: <10μA

10.Calibrating voltage: 1mV±2%

11.Voltage tolerance: ≥±500mV

12.Time constant: ≥3.2s

13.Frequency response: 0.05~160Hz(-3db)

14.Noise level: <15μVp-p

15.Inter-channel Interference: ≤0.5mm

16.Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3%)

17.Recording mode : 3ch, 3ch+, 3ch+++, 6ch

.Default Man.Mode is 3ch format

.Default Auto.Mode is 6ch+ format

18.Paper speed: 6.25,12.5, 25, 50mm/s(±3%)

19.Paper : 112 mm X 20 M roll paper

20.Input dynamic range:±10Vpp

21.Sensitivity valve: ≤20μV

22.Display: 800x480 graphic 7 inch color LCD

Standard Configuration:

1.Main unit 1 set

2.Patient cable 1 set

3.Limb electrode 1 set (4pcs)

4.Chest electrodes 1 set (6pcs)

5.Grounding cable 1 pc

6.Paper axis 1 set

7.Thermal paper 1 roll

8.Fuse 2 pcs

9.3-cord power cord 1 pc

10.AC Adaptor 1 pc

11.User manual 1 pc
