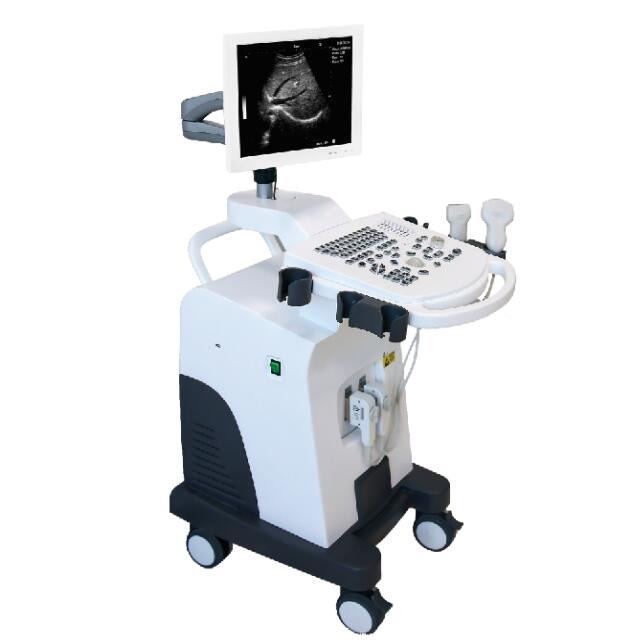

Full Digital Ultrasound Scanner AJ-6100T
FEATURES
High definition and multifunctional trolley type full digital ultrasonic diagnostic apparatus
The image is clear and the operation is convenient
15 inch LCD
Powerful image post-processing functions
The first class digital imaging technology, the image is clearer
DBF all digital beam-forming
DRF real-time dynamic reception of focus by point by point
DRA real-time dynamic sound velocity change
THI tissue harmonic imaging
RDA real-time dynamic aperture imaging
DFS numerical control dynamic frequency scanning
RDF real-time dynamic filtering
A stable and concise operating system
Backlight silicone keyboard, more comfortable and wearable, darkroom use no longer worry
Intelligent menu, human-computer dialogue is easy and quick
Shows two puncture guide lines, adjustable angles and positions.
The multiple rate shows that the diagnosis is more accurate.
External USB storage, image uploading more convenient
Large volume movie playback, image automatic circulation demonstration
Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc.
SPECIFICATIONS
Display: 15 inch LCD
Scanning mode: convex matrix / linear array / microconvex
Probe interface: 2, with automatic identification function to support multiple probes.
Interface: Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian
Display mode: B, B+B, 4B, B+M, M
Electron focusing: four segment electron focusing
Postural markers: 97 species
3.5MHz Convex Probe: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz
5.0MHz Micro Convex probe: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
6.5MHz Trans vaginal probe: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
7.5MHz Linear probe & Rectal Probe: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Image mirroring: upper and lower mirrors, left and right mirrors, black and white flip, in any mode can be mirrored conversion, operation
The image can be rotated at 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees.
Measurements: distance, circumference, area, volume, heart rate, gestational age (BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display and so on.
The function software package and measurement method can be selected through the track ball cursor.
Angle measurement, you can intuitively see the angle and length of the angle.
Have histogram function
Have depth measurement function
It has 16 obstetric measurement packages and has fetal growth curve function.
In any imaging mode, the data can be measured in real time
Automatic memory and generative function of obstetric data
Character display: date, clock, name, sex, age, doctor, hospital, annotation (full screen character editing) (a mixed editor for letters, numbers, punctuation, and arrows)
One key out of patient information entry function
Movie playback: 512 frames, continuous playback or one by one view.
Permanent storage: built in 8G memory, more than 4000, supporting U disk storage (available for storage).
Single memory image time is less than 6 seconds
A key to find saved images, can be found by the date named folder quickly found and a key export.
Gray scale: 256 level
With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually.
Lithotripsy positioning, dynamic target tracking function
Dynamic range: 0-135dB, step 8, with independent buttons, visually adjustable, adjustable cycle.
Intelligent TGC control: 8 segments.
Total gain: 0-100, step 2
Variable aperture, dynamic trace, dynamic digital filtering, etc.
2 stage visible tunable harmonics of tissue
8 kinds of fake color processing, etc.
The 4 frames are independent keys, visually adjustable, cycle adjustable, and can also be changed through the track ball cursor.
6 kinds of line correlation, with independent buttons, visually adjustable, circular adjustment, or track ball cursor changes.
The 8 types of gamma correction are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor.
Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the track ball cursor.
The scanning range can be adjusted 4 levels, with independent buttons, visually adjustable, circular adjustment, and also can be changed by the track ball cursor.
Luminance key addition and subtraction enhancement and weakening function
Caps and Shift locking functions
Blind area: less than 4
Maximum display depth: 3.5MHz:126-307mm 6.5MHz:189mm
7.5MHz:40-166mm5.0MHz:205mm
Geometric accuracy: transverse less than 5%, longitudinal less than 5%
Resolution: the side is less than 2mm, and the axis is less than 1mm
Interface: RS-232 interface, VGA interface, VIDEO interface, USB interface.
Display rate: 6 display modes; lesion diagnosis is more accurate. In the case of x 1.5 and X 1.8, the display of depth can be raised
Starting time is less than 10 seconds
The button has a buzz sound, but open / close
Formulae of fast data measurement
You can quickly set time, name and other editors through the track ball and keyboard.
Standard Configuration
Main unit
3.5MHz Multi-frequency convex probe(2.0MHz-5.0MHz)
15 inch high resolution LCD monitor
Pseudo Color Function
4920 pcs Image Storage
512frame Cine Loop
2 Probes Connectors
USB Port for Real-time Picture Uploading to PC
Options
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 7.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
